Thailand DLT Certified 4G GPS Tracker with Card Reader
4G GPS tracker, Thailand DLT regulated, for Taxi and other pubilc transport fleet management
Product Detail
Thailand DLT Certified 4G GPS Tracker with Card Reader
Basic Features of VT45
- Thainland DLT Certified
The hardware and firmware were designed based on DLT 2023 requirements.
- Independent MCU to Process the Card Reader
- DLT Features
Detect and report the licenced card
The driver's license ID number swill only be reported when the driver's ID card is swiped for the first time.
For the conditions where the driver's license number must be recorded: until ACC OFF or swipe a new driver ID card.
When ACC OFF, the device won't report card ID.
Swip card & no swipe card alarm
When swiping a card, the device sends a protocol to the server
(1) When swipe an authorized card, the alarm stops within 0.5 seconds.
(2) When the card is swiped incorrectly (swipe the card in reverse), the alarm beeps twice in succession, and then cycles at this frequency: stop for 0.5 seconds, beep for 0.5 seconds.
(3) When swipe an unauthorized card, the alarm beeps once.
Login & Log out alarm
When logging in or out, the device will make sounds alarm and report to the server.
Overspeed alarm
Overtime driving alarm
Positioning failure alarm
Buffer and report data
When the signal is blind, cache the data locally. When the signal is restored, retransmit the cached data to the server.
- Easy Integration
Strongly compatible, with Concox&Jimi communication protocol, easy device migration.
- LTE & GSM Network
4G LTE network with 2G GSM fallback
- GPS & BDS & LBS Positioning
- Multiple Alerts
Instant alerts of typical events such as cover removal, vibration, low battery, etc.
- Reserved AD Inputs
- Remote Cut-off (Fuel/Power)
Immobilize a vehicle by cutting off its power source or fuel supply via a pre-installed relay.
- Ignition Detection
Constant, real-time ACC/ignition status detection from the vehicle.
- Microphone (Optional)
Hands-free communication with your employee instead of using the phone.
- Panic Button (Optional)
Contact dispatch or emergency support with a discreet, in-cabin SOS button.
- Tamper Alert
Basic Parameters of VT41TH
| GNSS | ||||
| Positioning System | GPS+BD+LBS | |||
| Frequency | L1&L2 | |||
| Positioning Accuracy | <10m | |||
| Track Sensitivity | -162dBm | |||
| Acquisition Sensitivity | -148dBm | |||
| TTFF (Open Sky) | Avg. hot start ≤1 s | |||
| Avg. cold start≤ 32s | ||||
| Cellular | ||||
| Communication Network | Asia | |||
| LTE-FDD/4G | B1/B3/B5/B8/B7/B20 | |||
| LTE-TDD/4G | / | |||
| GSM/2G | B3/B8 | |||
| Power | ||||
| Battery | 180mAh, 3.7V industrial-grade Li-polymer battery | |||
| Input Voltage | DC 9-95V | |||
| Current | Tracking Mode | 12V, Avg.55mA | ||
| Sleep Mode | 12V, 15mAh | |||
| Interfaces | ||||
| LED Indication | Status Indicator (Red), GSM indicator (Yellow), GPS indicators (Blue) | |||
| SIM | Micro-SIM | |||
| Dimensions | 99mm*54mm*16.5mm, 75g | |||
| G-sensor | Built-in 3-axis G-sensor | |||
| Bluetooth | Optional | |||
| Temperature Detection | –20℃ to +70℃ (±0.5℃) | |||
| Multiple Alerts | Low battery alert, tamper alert, vibration alert, removal alert, power-off alert | |||

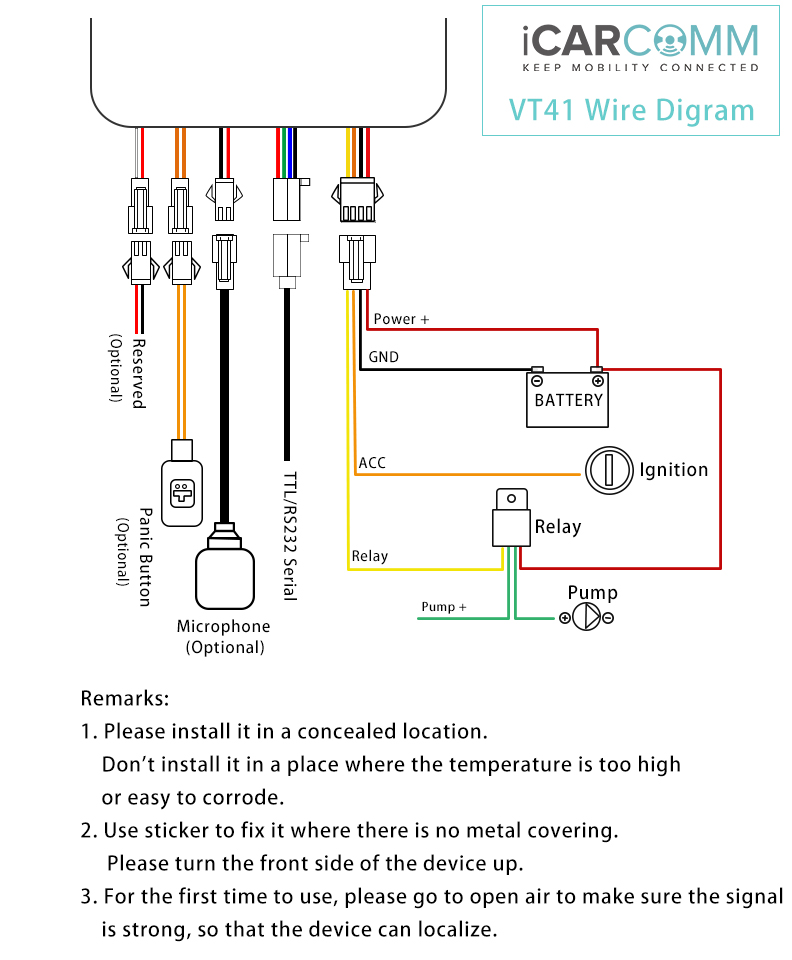

Wire Diagram
Copy product links
Long by picture save/share
INQUIRY
Add Successfully
UDR Technology
Vehicle fleet managers seeking to cut costs and lower their carbon footprint depend on accurate positioning and navigation data to reduce fuel consumption.
Using inertial sensor measurements, UDR offers a smooth navigation experience in dense urban environments by bridging gaps in GNSS signal coverage and mitigating the impact of multipath effects caused by GNSS signals that bounce off buildings. It further increases positioning accuracy in demanding environments by including the vehicle speed in the sensor-fusion algorithm.
品牌介绍
BRAND INTRODUCTION
某某某品牌创建于2001年。目前品牌拥有门店800余家，以法式优雅、自信、自然在作为品牌的灵魂，以摩登与浪漫为品牌代名词，充分演绎出现代女性在生活中，不同角色的灵活转换。产品注重款式细节的设计，整体色彩的搭配、融合，款式的组合，通过不同的搭配方式来满足客户各种场合的…
品牌介绍
BRAND INTRODUCTION
某某某品牌创建于2001年。目前品牌拥有门店800余家，以法式优雅、自信、自然在作为品牌的灵魂，以摩登与浪漫为品牌代名词，充分演绎出现代女性在生活中，不同角色的灵活转换…
Excellent Positioning Performance & Anti-jamming
UDR enables reliable positioning even in case of GNSS signal interruptions, jamming, or reflected or weak signals and is independent of any connection to the car, other than power.
Features
Compact UDR GNSS solution
Independent of any electrical connection to the car
Leading performance under poor signal conditions
Low cost of ownership, ideal for high volume projects
APPLICATION SCENARIOS
- OUR ADVANTAGE -
Heavy Duty Vehicles
Bus
Trucks
