VC41 4G Mobile DVR Supports ADAS DMS BSD
4G Highly Integrated AI Dashcam with the features of ADAS DMS, four channels of video recording, Web&APP cloud platform. It is developed with built-in AI algorithms for a safe driving system.
Product Detail
4G AI MDVR with ADAS DMS BSD Supported
Features
- LTE & WCDMA & GSM network
CAT.1 /CAT.4 4G LTE network with 3G WCDMA & 2G GSM fallback
- GPS & BDS & LBS Positioning
- Built-in AI Featured
Valuable ADAS, DMS and BSD algorithms and monitoring will actively assist drivers in increasing awareness and safety on the road.
- 4CH for Video Recording and AI Detection
- Multiple Serials
- Event Video Logging to Cloud
The event video data will remain unaffected by loop recording and will be uploaded to the platform cloud.
- Multiple Alerts
Constant, real-time ACC/ignition status detection from the vehicle.
VC41 supports rich functions, providing telematic service providers with accurate driving data, video footage, images, and GPS data to facilitate more efficient and safer fleet management. It supports 4 channels of analog audio and video signal input and 1 channel of IPC signal input. The analog channel supports up to 4 channels of 1080P encoding, and the digital channel supports up to 1080P encoding by H.265 encoding and compression technology. VC41 can support up to 2 SD/SDHC cards, maximum 256GB * 2.
Parameters
Model | VC41 |
Video Compression Standard | H.265/H.264 |
audio Compression Standard | G.711A |
Resolution | 1080P/720P/4CIF/CIF |
Video Input and Output | Video input: 4 analog/AHD HD, 1 digital HD Video output: 1 channel CVBS/VGA (choose one out of two) |
Audio Input and Output | Audio input: 4 channels, 3Vp-p linear level, 1K ohm Audio output: 1 channel, 2Vp-p linear level, 600 ohms |
Wireless Network | Built-in 4G full Netcom module |
Positioning Module | GPS/Beidou |
Antenna Interface | SMA interface |
ADAS&DMS&BSD | Optional built-in |
storage medium | Support 2 SD/SDHC card storage, maximum 512GB |
Driving Data Collection | Input: 4 channels of high-level trigger, 2 channels of low-level trigger, 1 channel of pulse acquisition Output: 3 channels, 12V/5V output, one high level output |
Network Port | 1pc |
Serial Interface | 1 * RS232 interface, 1 * 485 interface |
Operation Method | Infrared remote control |
Device Power Consumption | <10W |
Operating Temperature | -30℃ - ＋70℃ |
Operating Voltage | DC8V-36V |
Voice intercom | 1 channel, support two-way intercom/support cluster intercom Input: 1.0Vp-p linear level, 1K ohm Output: 2.0Vp-p linear level, 600 ohms |
AI Functions
ADAS features with AI algorithms:
Pedestrian Collision Warning (PCW)
Lane Departure Warning (LDW)
Forward Collision Warning (FCW)
DMS features with AI algorithms:
Detection & Alarm for Fatigue Driving
Detection & Alarm for Distraction
Detection & Alarm for Phone Calling
Detection & Alarm for Seatbelt Buckling
Detection & Alarm for Smoking
Copy product links
Long by picture save/share
Wide Viewing Angle
——
Built-in AI algorithms
Auto-calibrate system, easy to install and operate
Road-forward Camera (Built-in)
Viewing Angle: D: 125°, H: 105°, V: 58°
ADAS features with AI algorithms:
LDW-Lane departure warning
FCW-Forward collision warning
HMW-Headway Monitoring warning
PCW-Pedestrian collision warning

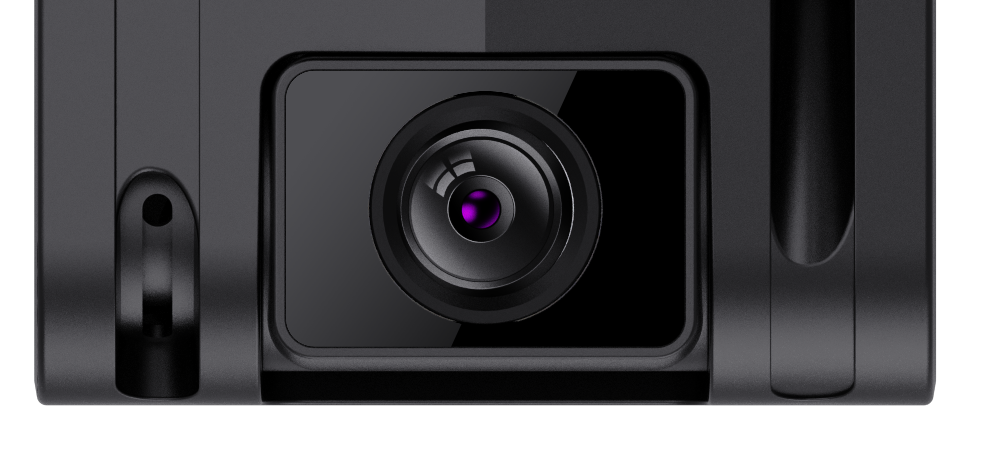

Inward/In-Cabin Driver-facing Camera (Built-in)
Viewing Angle: D: 120°, H: 100°, V: 45°
Wide viewing angle, available to monitor the whole cabin members: drivers and passengers
DMS features with AI algorithms:
Detection & Alarm for Fatigue Driving
Detection & Alarm for Distraction
Detection & Alarm for Phone Calling
Detection & Alarm for Seatbelt Buckling
Detection & Alarm for Smoking
品牌介绍
BRAND INTRODUCTION
某某某品牌创建于2001年。目前品牌拥有门店800余家，以法式优雅、自信、自然在作为品牌的灵魂，以摩登与浪漫为品牌代名词，充分演绎出现代女性在生活中，不同角色的灵活转换。产品注重款式细节的设计，整体色彩的搭配、融合，款式的组合，通过不同的搭配方式来满足客户各种场合的…
品牌介绍
BRAND INTRODUCTION
某某某品牌创建于2001年。目前品牌拥有门店800余家，以法式优雅、自信、自然在作为品牌的灵魂，以摩登与浪漫为品牌代名词，充分演绎出现代女性在生活中，不同角色的灵活转换…
Fixed Lens
Special slots to fix the forward camera and inward camera
After the camera lenses are fixed, they wouldn't be moved by human interface or rough ride
ABOUT
Locked Slots for SIM card and SD card
——
Drivers or passengers cannot remove the SIM card or memory card.
More suitable for commercial fleet management.
