4-Wire 2G GSM Basic GPS Tracker
850/900/1800/1900Mhz
A wide operating voltage range makes this GPS tracker more workable for a variety of vehicles, including heavy-duty vehicles, industrial equipment, mopeds, scooters, electric automobiles, and more.
- Remote Cut-off (Fuel/power)
Immobilize a vehicle by cutting off its power source/fuel supply via a pre-installed relay.
This vehicle tracker will detect constant, real-time ACC/ignition status from the vehicle.
When the device's power cable is cutted off, it will switch to using the internal built-in battery and send an alarm to platform
Instant alerts for atypical events such as device removal, impounding, geo-fence entry/exit, abnormal vibration, speeding, etc.
Parameters
| GNSS |
| Positioning system | GPS+BDS+LBS |
| Frequency | L1, |
| Positioning accuracy | <10m (1σ) |
| Track sensitivity | -162dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec (Open Sky) |
| Avg. cold start ≤32sec (Open Sky) |
| Cellular |
| Communication network | LTE/GSM |
| Frequency | GSM: GSM 850/900/1800/1900 MHZ |
| Power |
| Battery | 80mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-95VDC |
| Interface |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Micro-SIM |
| Data storage | 64+128Mb |
| Digital inputs | ACC/Ignition |
| Digital outputs | Relay |
| Physical specification |

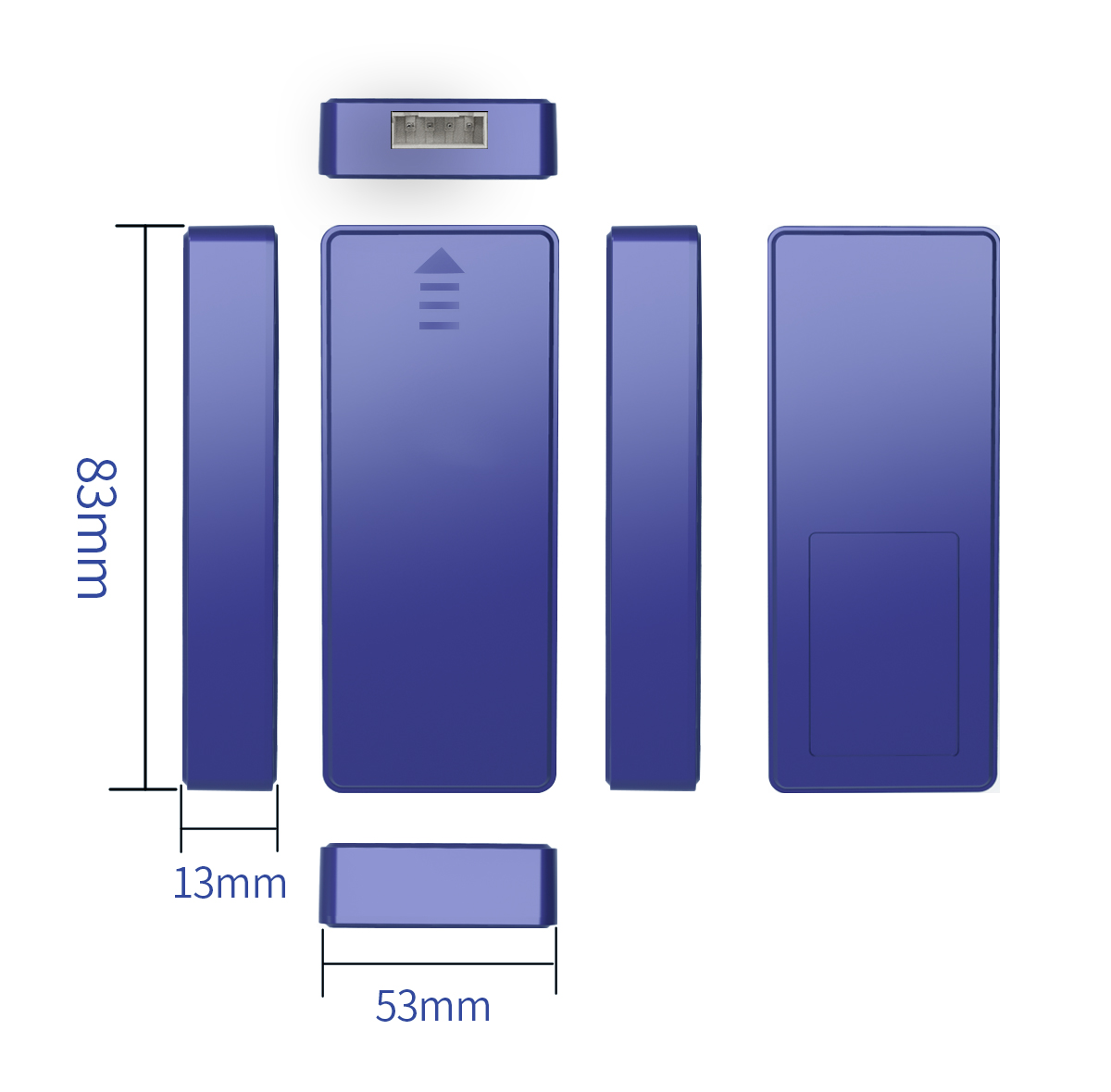

| Dimensions | 83mm*33mm*13.5mm |
| Weight | 35g |
| Operating environment |
| Operating temperature | –20℃ to +70℃ |
| Feature |
| Sensors | Accelerometer |
| Scenarios | Vehicle movement alert, Geo-fence, Over-speed alert, Vehicle battery detection, Power supply disconnection |
* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
