Hole-free to install
Automotive-grade quality
Ideal for HGV and Bus safe driving & parking
Wire Diagram
Main Components of the Solution
Application Scenarios

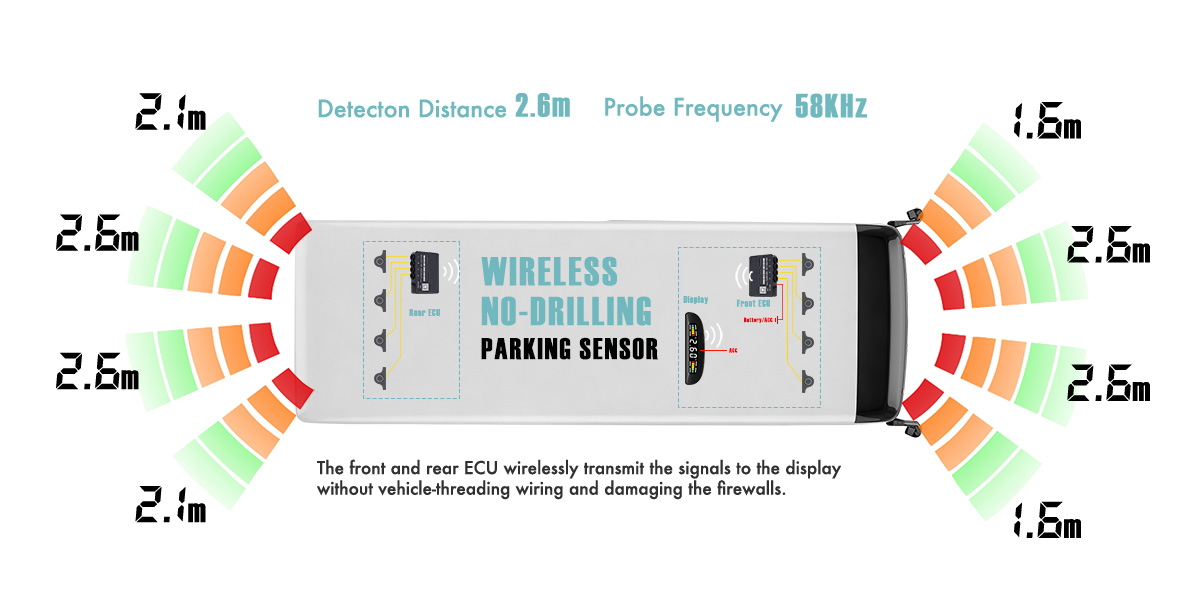

Wireless No-drilling Parking Sensor System
Product Detail

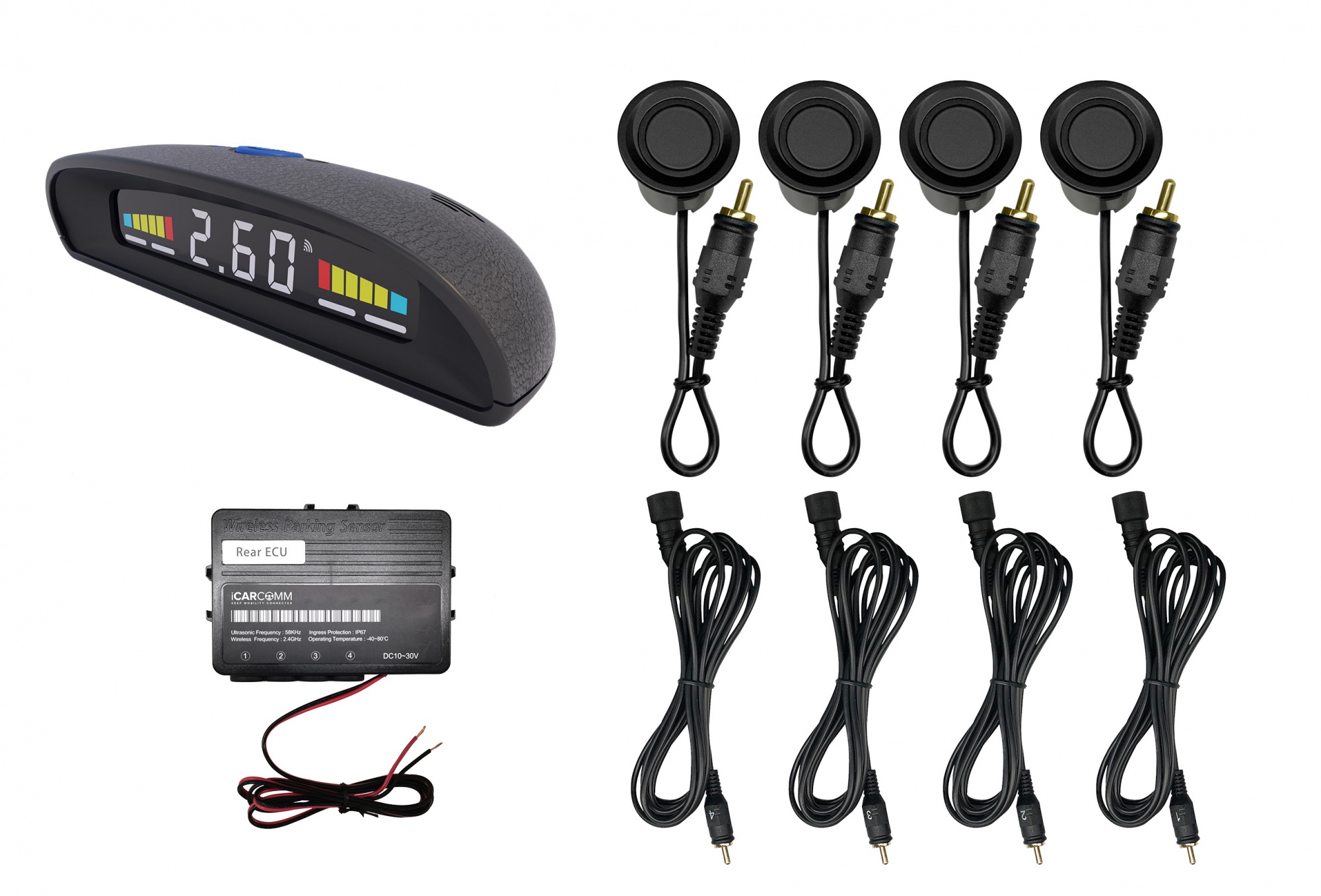

Wireless No-drilling Parking Sensor System
Model NO.: WPS-R4
General
-Detection Range: 0.30-2.60m
-Rated Voltage: 12/24V DC
-Operating Range: 10-30V
-Operating Current: 130mA @12V
-Maximum Detection Distance Range: 0.60-2.60m
-Minimum Detection Distance Range: 0.30-0.60m
LCD Display
-Proximity Alert: Visual Direction & Indicators
-Audiable Buzzer: Yes, Level 1-8 adjustable
-Mute Function: Yes, Level 0
-Cable Length: 2m
-Dimensions: 110Wx30Hx50Dmm
ECU
-Material: PC
-Water Resistance: IP67
-Wireless Range: Up to 30meters
-Power Leads: 1m
-Dimensions: 110Wx80Hx25Dmm

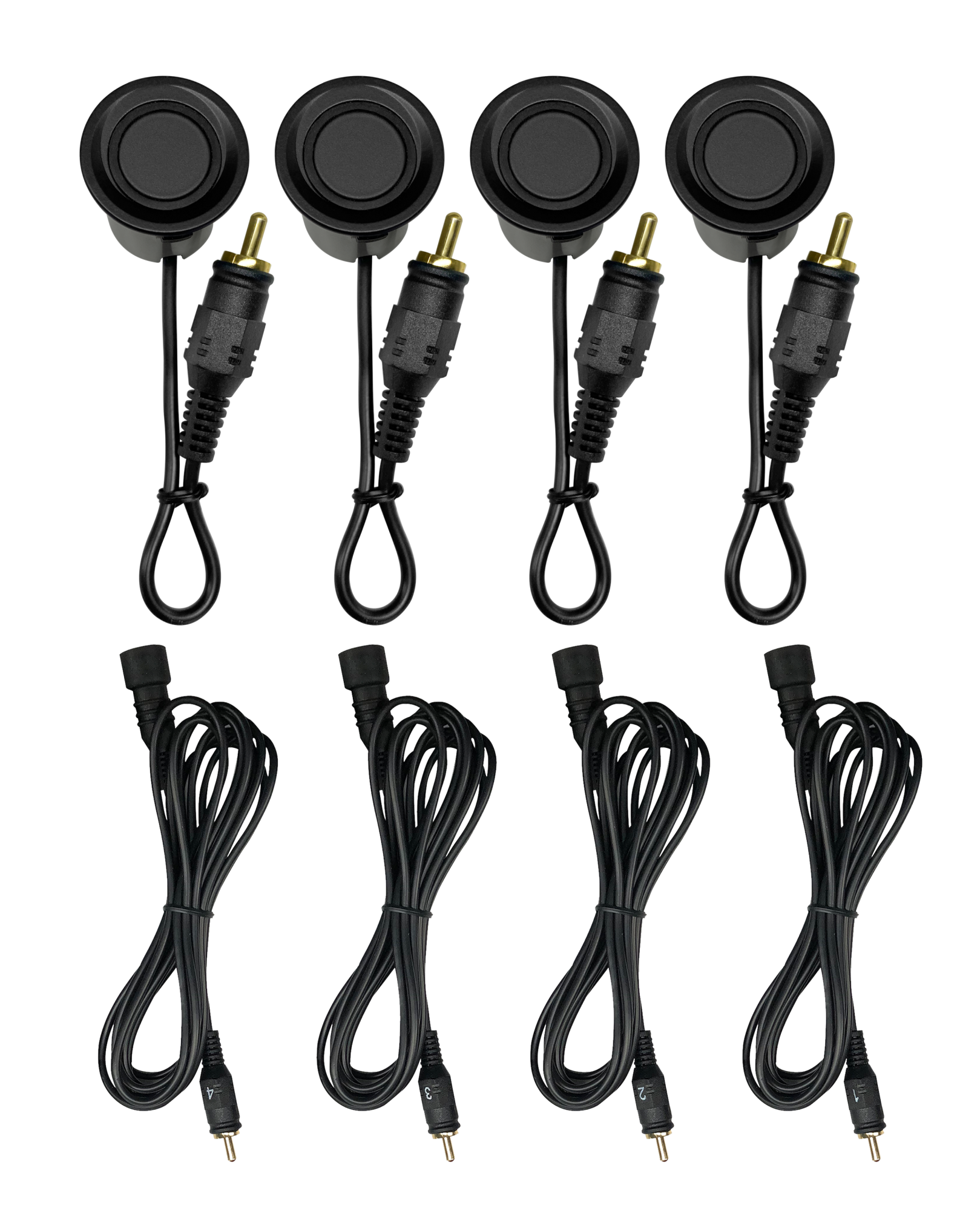

Sensors
-Sensor Type: Recessed 6°
-Sensor Size: 22mm
-Sensor Dimensions: 25.5Wx25.5Hx26Dmm
-Sensor Cable Length: 0.15m+2.4m（Extension cable）
-Sensor Installation: Under Mount or In-Bumper Mount
-Detecting Distance: 0.30-2.60m
-Ultrasonic Frequency: 58KHz
-Working Temperature: -40 to +80℃
-Water Resistance: IP67
-Under Mount Dimensions: 70Wx37Hx30Dmm
